My JLH Evolution amplifier (09-09-01) |
||

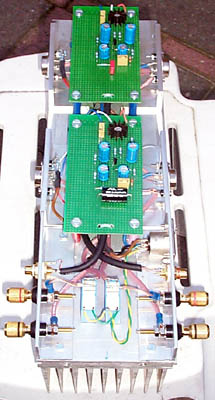

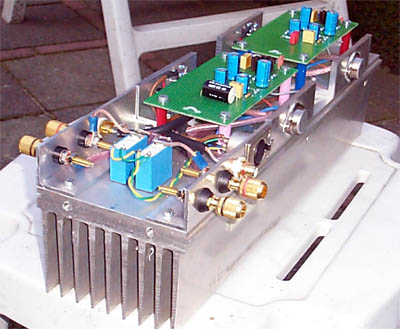

2 times 1 channel, the blue blocks are the output protection relays. |
||
A 5 pole XLR Neutrik conector is used to connect the supply to the amp. Pins are Vpos, Vmin, GND, Relay+ and Relay- |
||

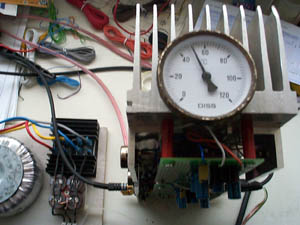

Nice and hot as you can see. The ambient temperature was about 20^C. (@ Iquiscent = 1 A) You can see a small part of the old supply on this picture. Currently I use more caps (60mF for both V+ and V-). |
||
I have to thank Rudy who was so kind to give me the huge cool block, and Heino for helping me with the mechanical layout! |
